USED TRANSFER BTB 8S 12U CN-HY ISO 30

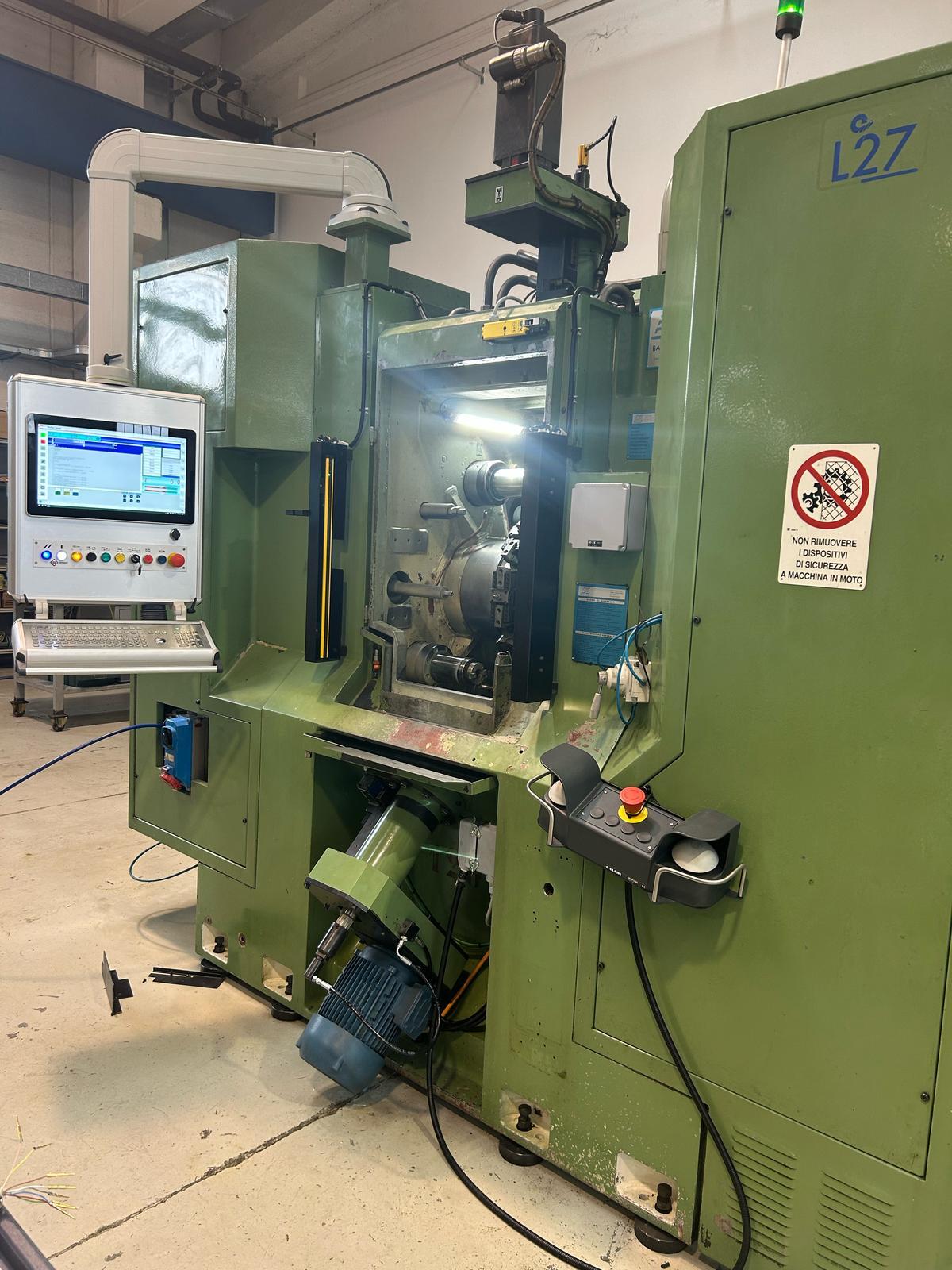

BTB TRO rotary transfer machine with a Ø 700 mm horizontal-axis index table, 8 stations and 12 T110-30 units with hydraulic CNC feed (CNC-HY) and ISO 30 spindles: 8 turning units and 4 drilling/tapping units with brushless motors, all with quick tool change. One turning unit carries a Komet recessing head. Loading and unloading are automatic, with a dedicated loader.
The machine is suited to brass parts such as fittings, valves and taps: capacity up to 1¼" BSP parallel and ¾" BSP taper threads, and 25 mm solid drilling in CW617N (OT58) brass.

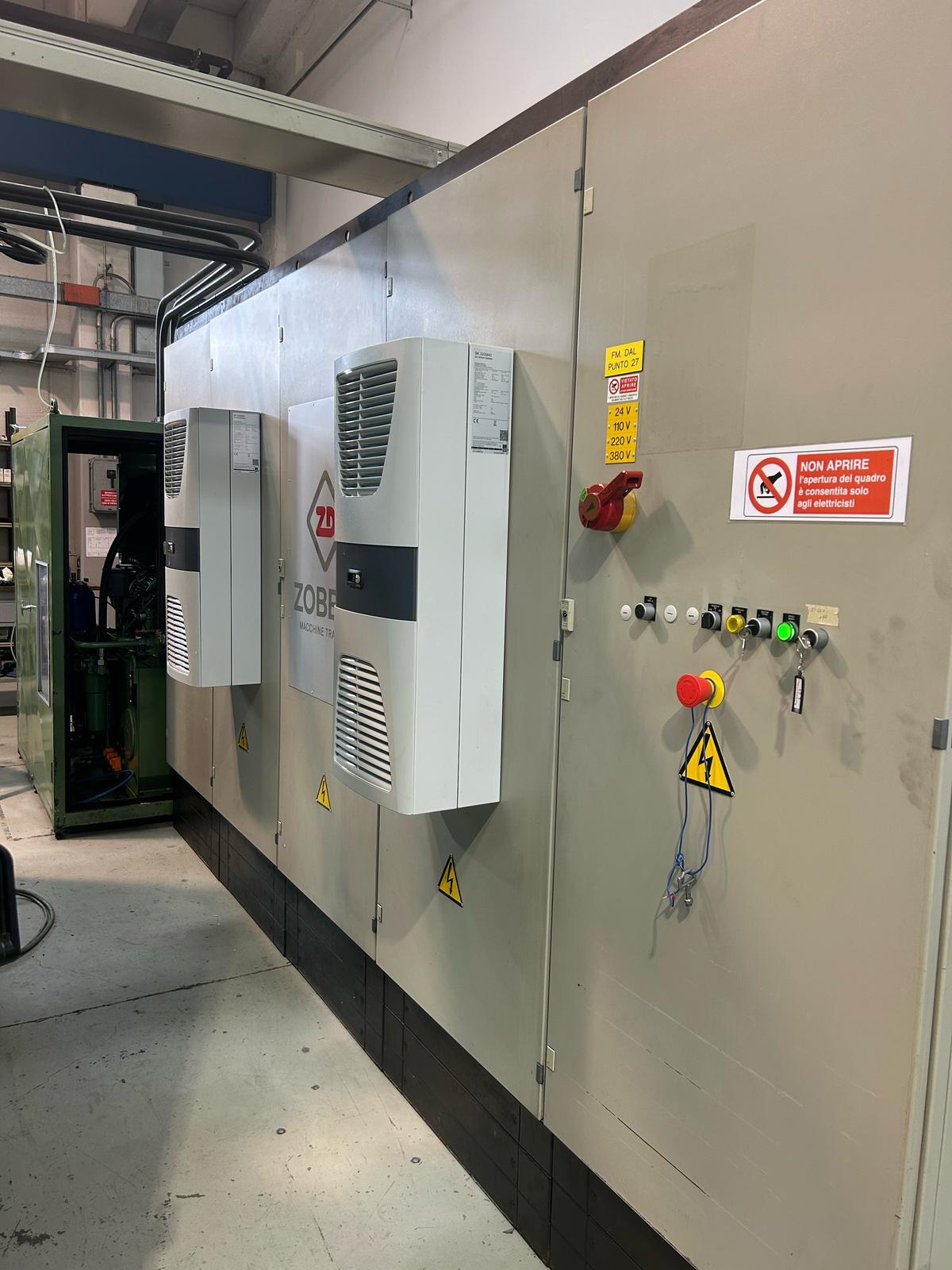

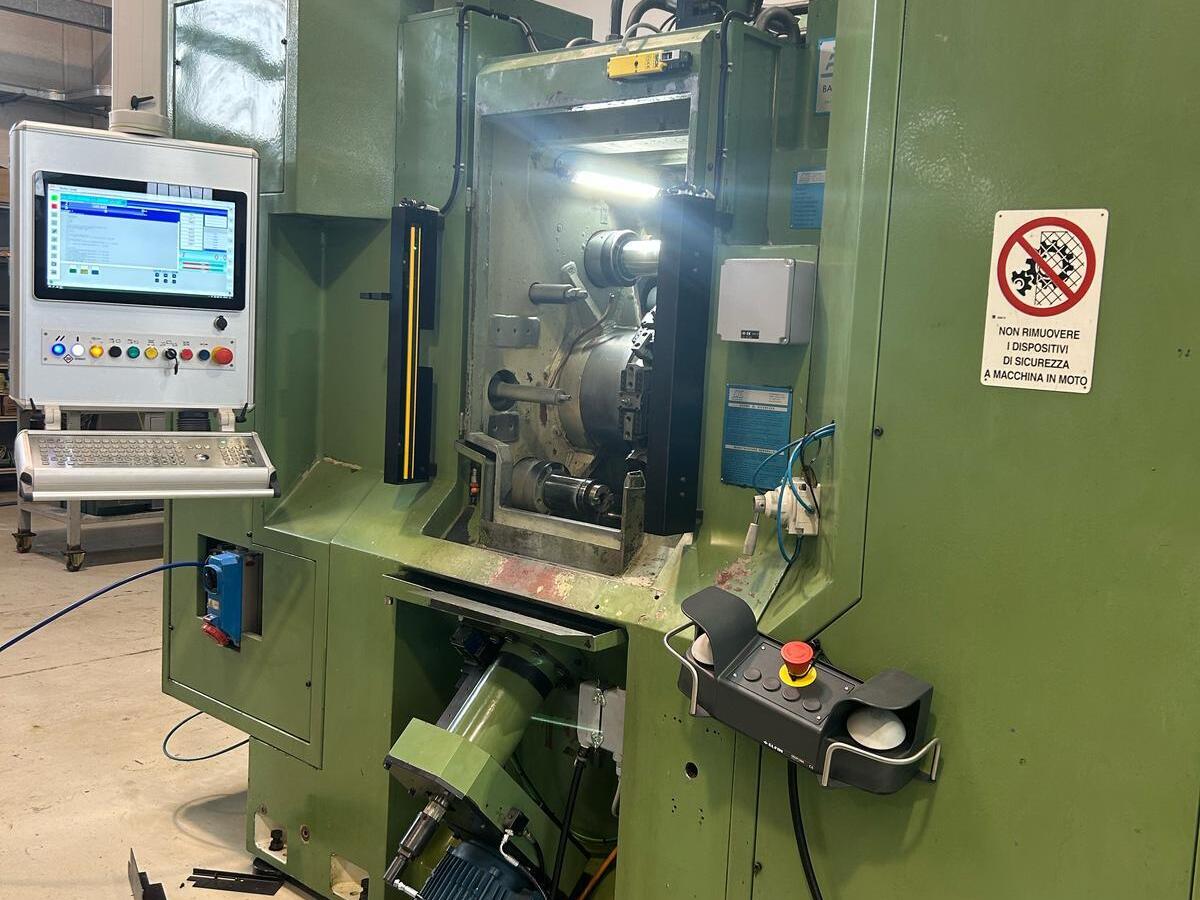

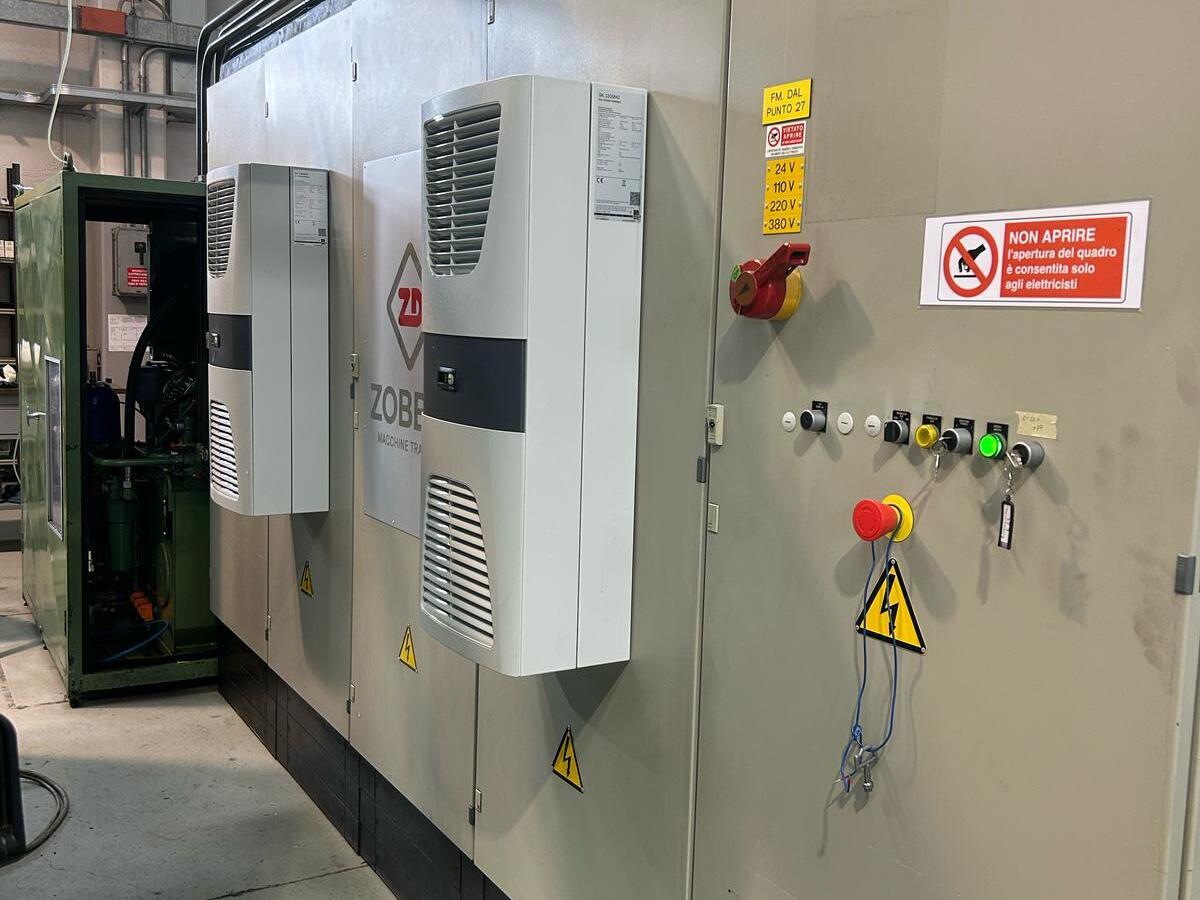

A partial ZD retrofit is in progress, with a new electrical cabinet, new operator panel and handheld control unit. It can be completed to suit your requirements.
Code: 610
Technology: CN hydraulic
Working axis: 3
Table: HORIZONTAL AXIS
N. of unit: 12
N. of clamps 8
Stroke: 110
ISO: 30

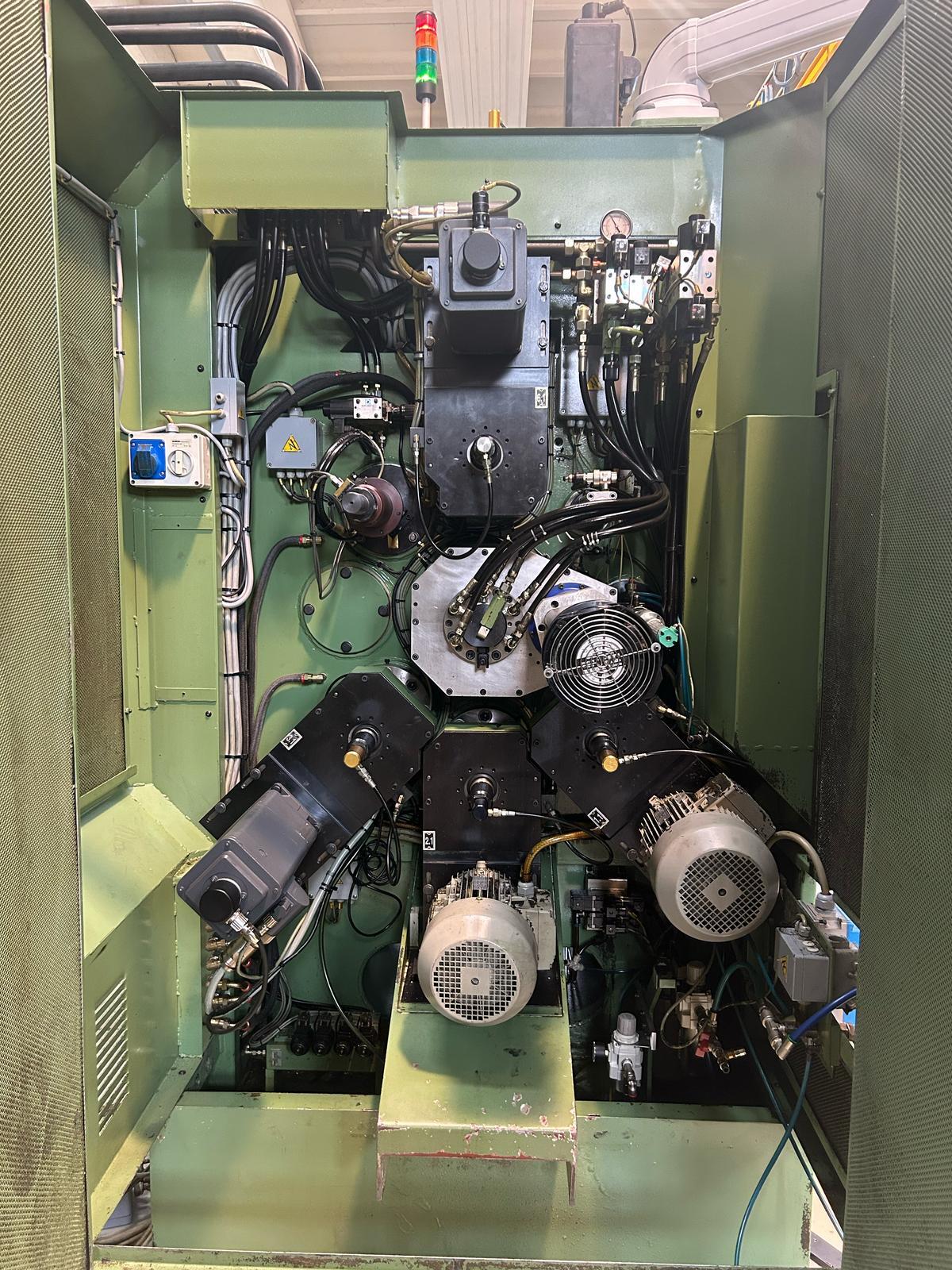

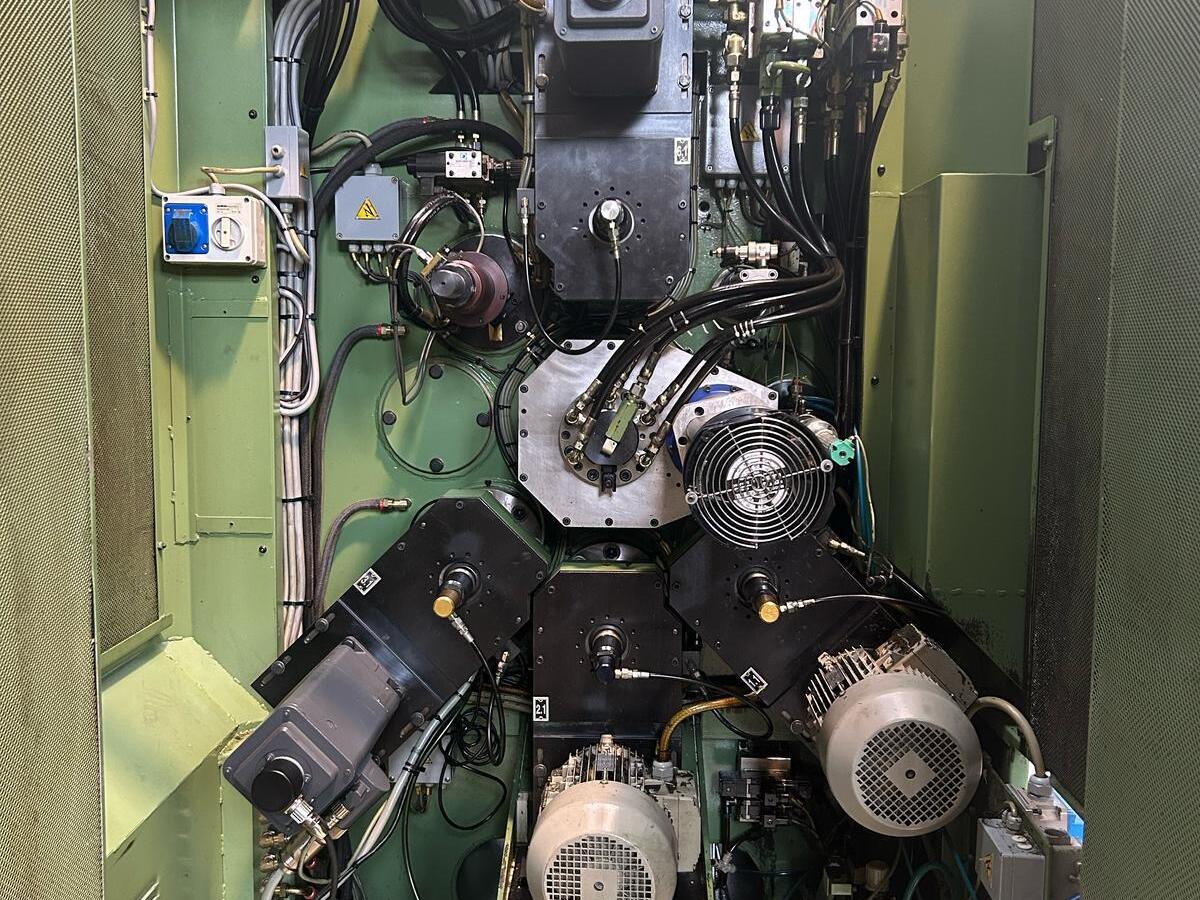

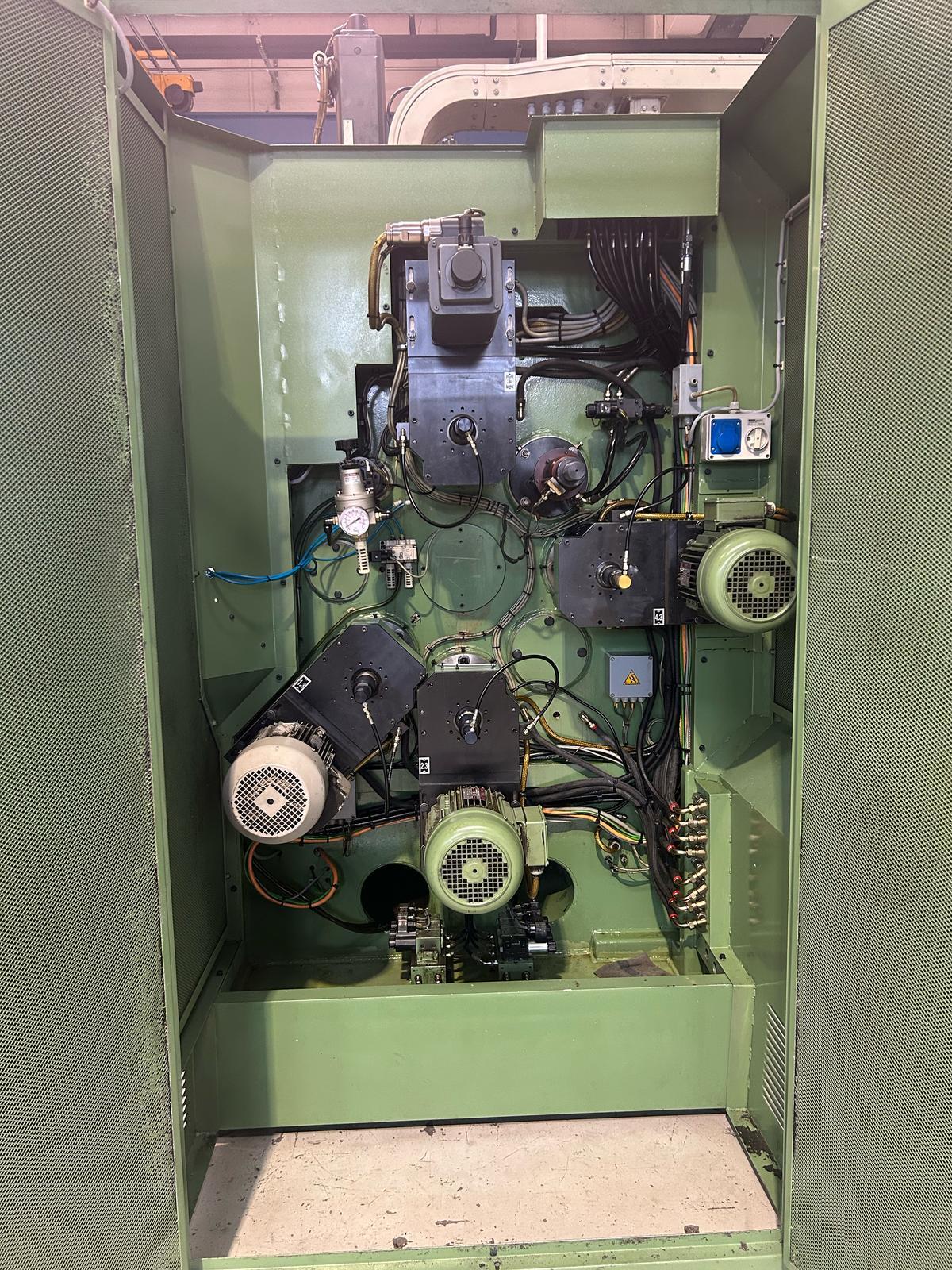

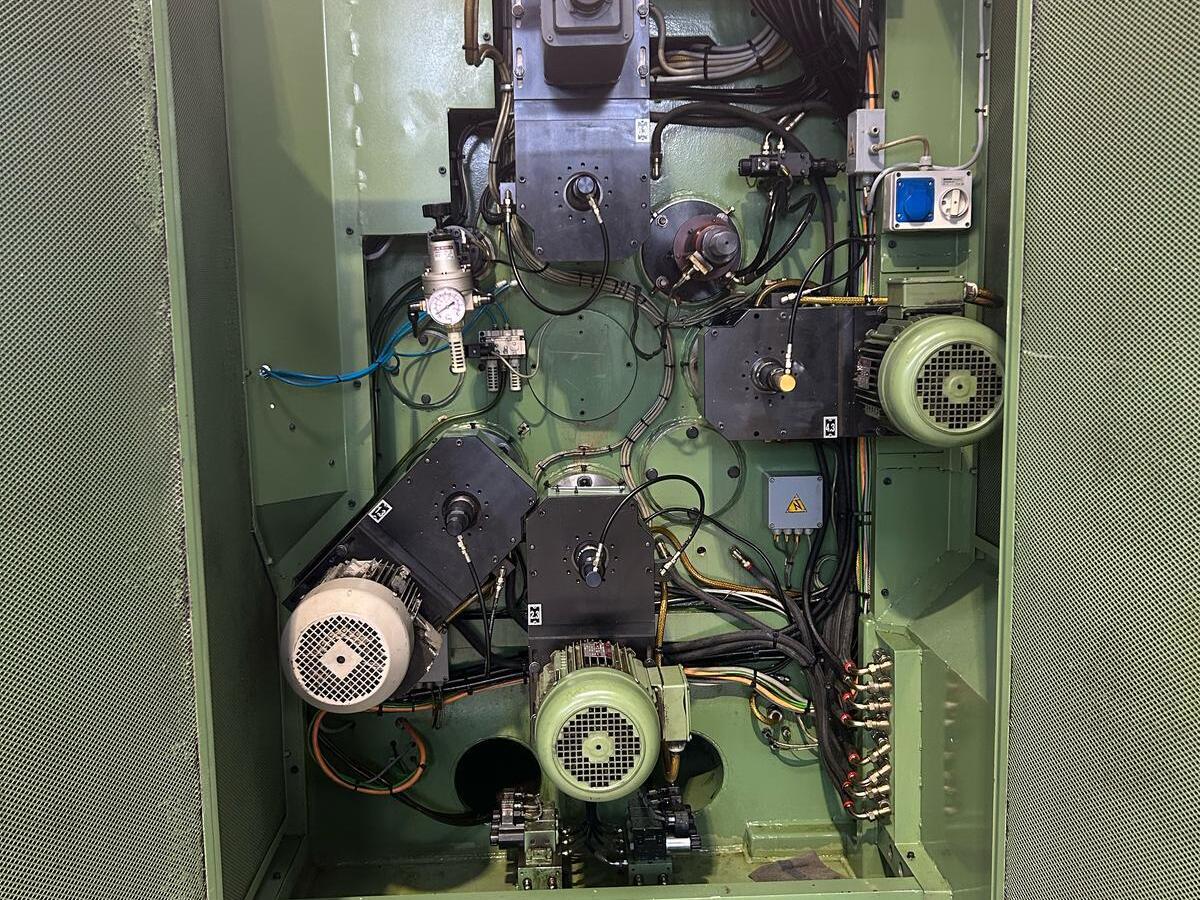

- Horizontal-axis rotary table, Ø 700 mm, 8 stations
- 8 Röhm M7 vises, 26 mm stroke; spindle nose to vise centre 200 mm
- 8 T110-30 CNC-HY turning units, ISO 30, 4 kW electric motor, 500/2,800 to 650/3,500 rpm
- 4 T110-30 CNC-HY drilling/tapping units with brushless motor, 22 Nm torque, 0–1,000 / 0–2,083 rpm
- CNC-HY units: 105 mm stroke, ±0.01 mm repeatability, high-precision Bosch proportional valve
- Komet recessing head at station 5
- Quick tool change
- Automatic loader and automatic unloading station
- Hydraulic unit and chip conveyor
- New ZD electrical cabinet and operator panel (partial retrofit)
- Capacity: 1¼" BSP parallel, ¾" BSP taper, 25 mm solid drilling in OT58 brass
This transfer machine has been inspected and checked and is ready to be delivered and installed.

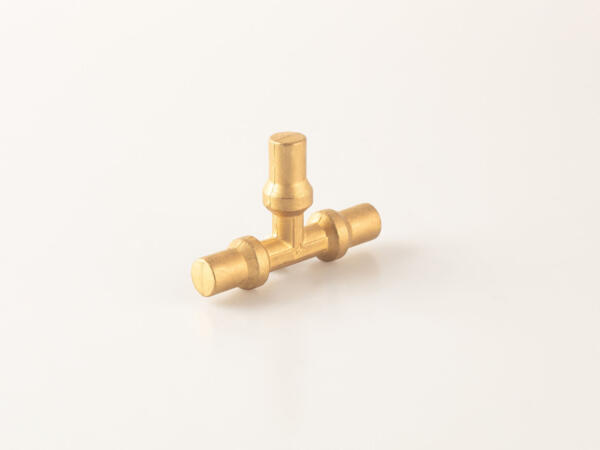

Corpo valvola - valve body

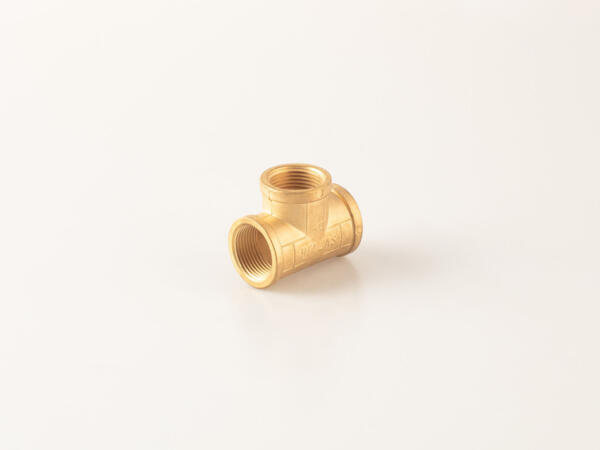

Corpo valvola - valve body
