What you can make
This transfer is able to machine different products:
Discover some examples.
2002 BTB TRV 8SD rotary transfer machine with a Ø 1800 mm vertical-axis index table and 8 double-vise stations: each vise clamps two parts that are machined in parallel, doubling output at every index. It carries 10 machining units with electric CNC feed (CNC-EL) and ISO 40 spindles: 4 turning units and 6 machining centres with tool change and through-tool coolant.

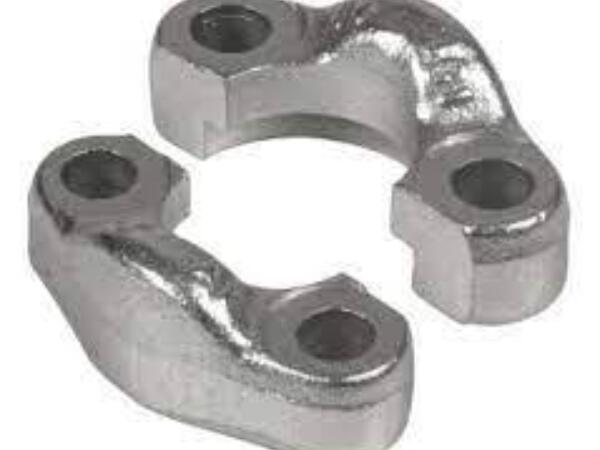

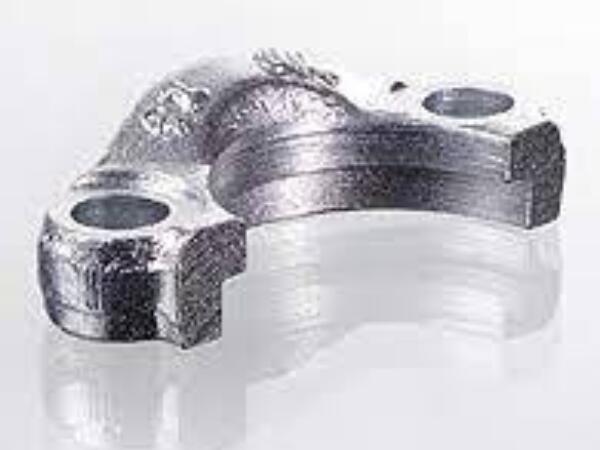

The two turning units at station 1 have a Komet CNC-EL recessing head with front head, for internal and external grooves, profiles, chamfers and facing. At station 7 a CNC double-blade sawing unit separates the parts. Loading and unloading are handled by a robot cell. The machine was used for SAE half-flanges and is ready to run after a general check.
Code: 607
Technology: CN
Working axis: 3
Table: VERTICAL AXIS
N. of unit: 4
N. of clamps 8
ISO: 40
- Vertical-axis rotary table, Ø 1800 mm, 8 stations
- 8 special lever-type double vises, hydraulic double-acting piston, 19 mm stroke (9.5 + 9.5), max 60 bar
- 4 T130-40 ISO 40 CNC-EL turning units, 5.5 kW motor with inverter, spindle 0–3,500 rpm
- 2 Komet 160 CNC-EL recessing heads with front head (station 1)
- 6 T160-40 CNC-EL ISO 40 machining centres with tool change and through-tool coolant: 4 with 120 mm quill (32 Nm motor, 0–4,000 rpm) and 2 with 130 mm quill (44 Nm motor, up to 5,400 rpm)
- Double-blade sawing unit: two independently driven spindles, inverter blade speed, positioning by brushless-driven ball screw on recirculating-ball guides
- Hydraulic reaction pushers
- Robot cell for loading/unloading
- Chip conveyor/elevator
- Year of manufacture: 2002
On request, the machine can be supplied with a full ZD retrofit, in which case the unit layout can be customized around your part. A partial overhaul of the machine is also available.
